High Temperature

Antenna

900-930 MHz MADP900-930 (1Y13200)

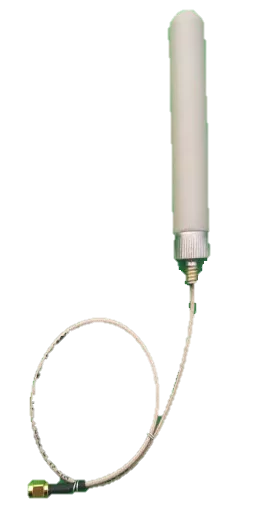

The MADP900-930 antenna is designed to be used in high temperature applications exceeding 260°F (127°C) where reliability is needed most. This antenna works with all radios within the 900-930 MHz band.

The antenna is designed to provide maximum Data, Video & Voice performance in a wide range of applications.

The antenna is provided with state-of-the-art radiating elements essential for maximum reliability and superior performance.

Robust and tough, this antenna is housed in a heavy duty temperature handling radome and is constructed from corrosion resistant materials for reliability in the harshest environments.



  • High Temperature Handling
  • Low VSWR
  • Rugged and Compact Design
  • Simple Installation.

ELECTRICAL:

  •  Frequency Range: 900-930 MHz
  •  Gain: 3.0 dBi +/- .5
  •  VSWR: 1.5:1 Typical
  •  2.0:1 Maximum
  •  Input Impedance: 50 Ω Nominal
  •  Power: 25 Watts
  •  Polarization: Vertical
  •  Radiation Pattern: Azimuth: 360° Elevation: 57°
  •  Input Connector: Type RPSMA Male (Other connectors available.)

MECHANICAL:

  •  Overall Height: 4 in. (101 mm)
  •  Net Weight: 7 lb. (3.18 kg)
  •  Maximum Wind Load: 125 mph (201 km/h)
  •  Operational Temps: -40° to +260°F (-40° to +127°C)
  •  Color: Black/Green/Tan/Grey/White
  •  Mounting: Plated Brass Base with Split Nut
