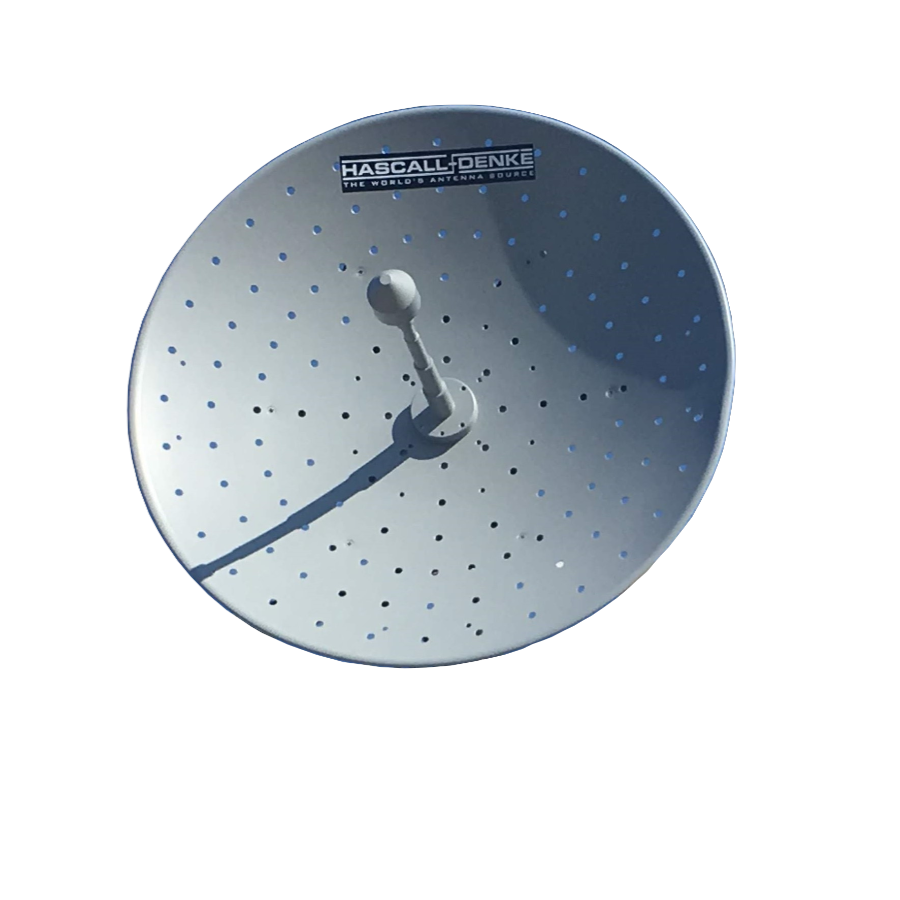

Dual Polarization Parabolic Antenna

4400-5000 MHz (1Y34550) FXPR4.4-5.0-D

This antenna is designed to be used in military, in-dustrial, commercial, and other applications where reliability is needed most. Broadband or individual frequencies operating in the 4400-5000 MHz band.

The antenna, provided with a unique set of radiating elements, allows for maximum reliability and superior performance over traditional single input antennas. Dual polarization reduces the im-pact from multi-path attenuation and improves quality of signals received

“Dual Polarized”, Optimized for high density, High speed , and Streaming Media. Increase your spectral efficiency thru polarized multiplexing while lowering channel correlation.

Robust and tough, built to military standards and now offered to the industrial-commercial industries. The antenna is constructed from corrosion resistant materials for high reliability in the harshest environments.



  • Optimized for High Density Data Flow
  • Reduction of Multi-Path Attenuation
  • Backhaul, Point-to-Point, Spot Illumination
  • Greater Spectral Efficiency
  • Reduction in tower loading
  • Tactical or Fixed Mount Options

ELECTRICAL:

  • Frequency Range: 4400-5000 MHz
  • Gain: 29 ~ 30 dBi +/- .5
  • VSWR: 2.0:1 Typical
  • Input Impedance: 50 Ω Nominal
  • Power: 30 Watts
  • Polarization: Dual Polarization
  • Port-to-Port Isolation: 32 ~ 45 dB Typical
  • Radiation Pattern at Mid Band: Azimuth: 5° Elevation: 5°
  • Input Connector: (2) Type N Female

MECHANICAL:

  • Depth: 23 in. (.59 mm)
  • Diameter: 32 in. (.82 m)
  • Net Weight:
    • 25 lb. (11.5 Kg) Tactical Mount
    • 40 lb. (18.2 Kg) Fixed Mount
  • Operational Temps: -40° to +185°F (-40° to +85°C)
  • Color: Black/Green/Tan/Grey/White
  • Mounting: Pipe Mast, Wall, or Special
