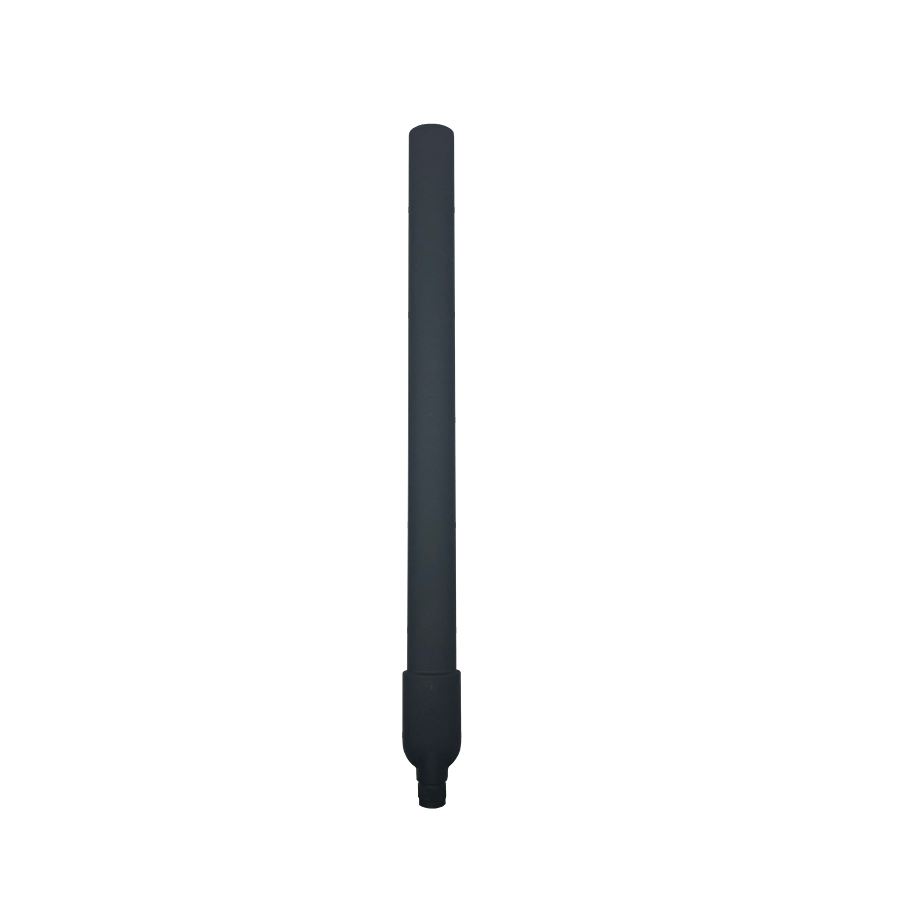

Dual Input | Omnidirectional Antenna

2200-2500 MHz (1Y37700) FXDP2.2-2.5-7

The FXDP2.2-2.5-7 antenna is designed to be used in military manpack, commercial, and other applications where reliability is needed most. This antenna works with all radios within the 2200-2500 MHz band.

The antenna is designed to provide maximum Data, Video & Voice performance in a wide range of applications.

The antenna is provided with state-of-the-art radiating elements essential for maximum reliability and superior performance.

Robust and tough, this antenna is constructed from corrosion resistant materials for reliability in the harshest environments.
 Low VSWR
 High Gain
 Ideal Pattern Coverage
 Digital Ready

    ELECTRICAL:

    • Frequency Range: 2200-2500 MHz
    • Gain: 2.2-2.3 GHz 6.5 dBi +/- .52.3-2.5 GHz 7.0 dBi +/- .5
    • VSWR: 2.0:1 Maximum
    • Input Impedance: 50 Ω Nominal
    • Power: 30 Watts PEP
    • Polarization: Vertical
    • Radiation Pattern: Azimuth: 360°
      Elevation: 22°
    • Input Connector: Type N Male

    MECHANICAL:

    • Overall Height: 16 in. (0.41 m)
    • Radome: 1.5 in. (38 mm) Oval
    • Net Weight: 0.4 lb. (0.18 kg)
    • Operational Temps: -4° to +158°F (-20° to +70°C)
    • Color: Black/Green/Tan/Grey
    • Mounting: Type N Male
