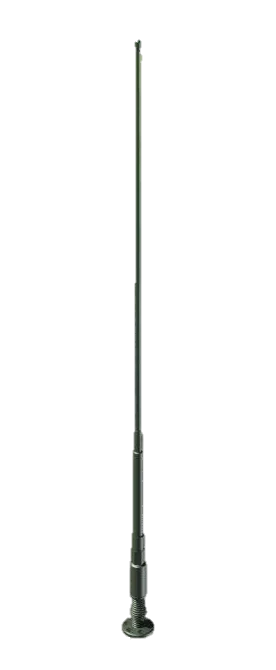

Mobile Broadband Antenna

20-120 MHz MVMP20X6 (1Y05150)

The MVMP20X6 broadband antenna is designed to be used on public safety vehicles. This antenna works with all radios within the 20-120 MHz band.

The antenna has a band pass covering 20-120 MHz with a single input at a power level of 100 Watts with a VSWR of less than 3.5:1 provides an efficient match to all modern public safety transceivers.

Robust and tough, this antenna is housed in a fiberglass radome and is constructed from corrosion resistant materials for reliability in the harshest environments.

  • Broadband
  • 20-120 MHz Continuous
  • 100 Watts
  • Low VSWR
  • Robust Construction

ELECTRICAL:

  •  Frequency Range: 20-120 MHz
  •  Gain: -5 ~ +1.5 dBi ref. 1/4 wave radiator on a 10’ x 10’ x 10’ ground plane.
  •  VSWR: < 3.0:1 Typical  3.5:1 Maximum
  •  Input Impedance: 50 Ω Nominal
  •  Power: 100 Watts
  •  Polarization: Vertical
  •  Radiation Pattern: Azimuth: 360°  Elevation: 90°
  •  Input Connector: Type N Female

MECHANICAL:

  •  Overall Height: 106 in. (2.69 m)
  •  Net Weight: 9 lb. (4.08 kg)
  •  Color: Black/Green/Tan/Grey
  •  Mounting: Six 1/4” (6.35 mm) holes equally spaced on a 3 1/16” (77.79 mm) diameter circle.
