UHF/L/S Band
Antenna

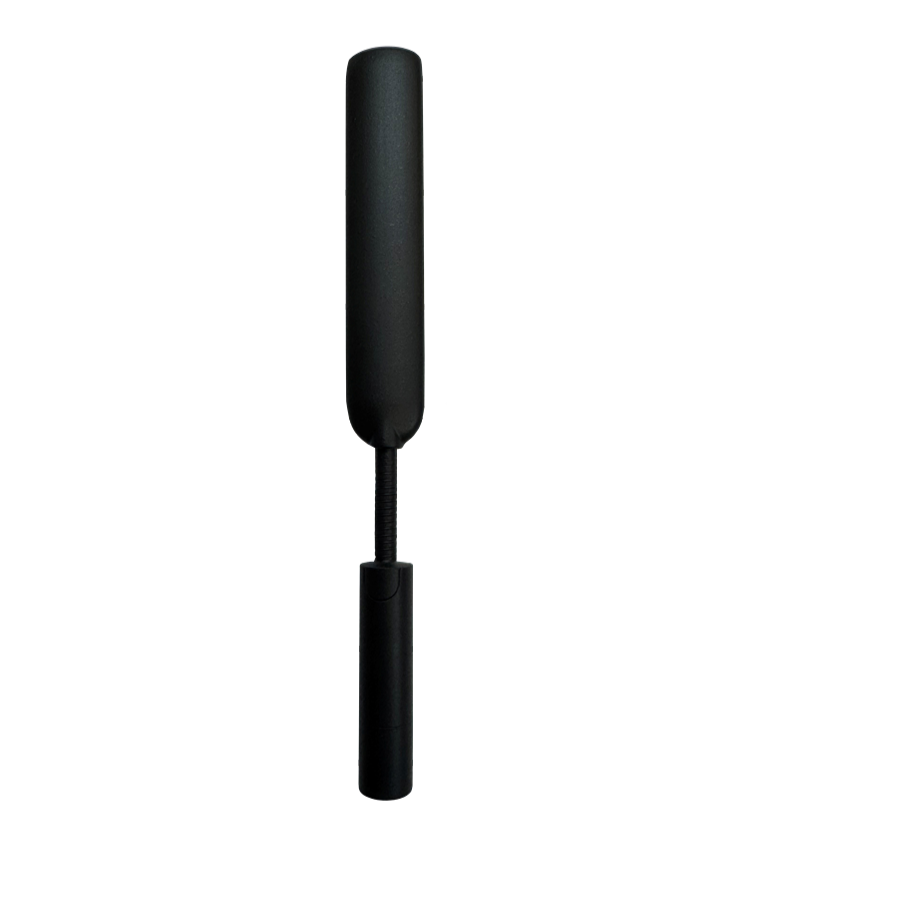

225-450 & 1250-2700 MHz – MPDP225X2/1.25-2.7 (1Y58950)
The MPDP225X2/1.25-2.7 antenna is designed to be used with Mobile Ad-Hoc Networking (MANET) radio systems. This antenna has been optimized for the Trellisware® TSM and KATANA Waveforms and other radios that operate in the 225-450/1250-2700MHz bands.
The antenna is designed with a state of the art Antenna Matching Unit (AMU) and radiating element for maxi-mum efficiency. Built robust and tough, this antenna is housed in a thick UV stable radome and is constructed from corrosion resistant material for reliability in the harshest environments and also designed to meet the rigors of MIL-STD-810.
Features
- Adaptable to other platforms
- Integrated AMU (Antenna Matching Unit)
- Tri-Band- UHF/L-Band/S-Band
Electrical Specifications
Frequency: 225-450 & 1250-2700 MHz
Polarization: Vertical
Impedance: 50Ω
VSWR: <2.5:1 Maximum; 2:1 Typical
Gain: 1.5 dBi +/- .5 dBi
Pattern: Omni Directional
Azimuth: 360°
Power: 25 Watts
Connector: TNC-M
Mechanical Specifications
Design: Dipole
Height: 10.5 in. +/- .25 (0.26 m)
Radome: Polycarbonate
Weight: 4 oz. (113.4 g)
Color: Black/Green/Tan/Grey
