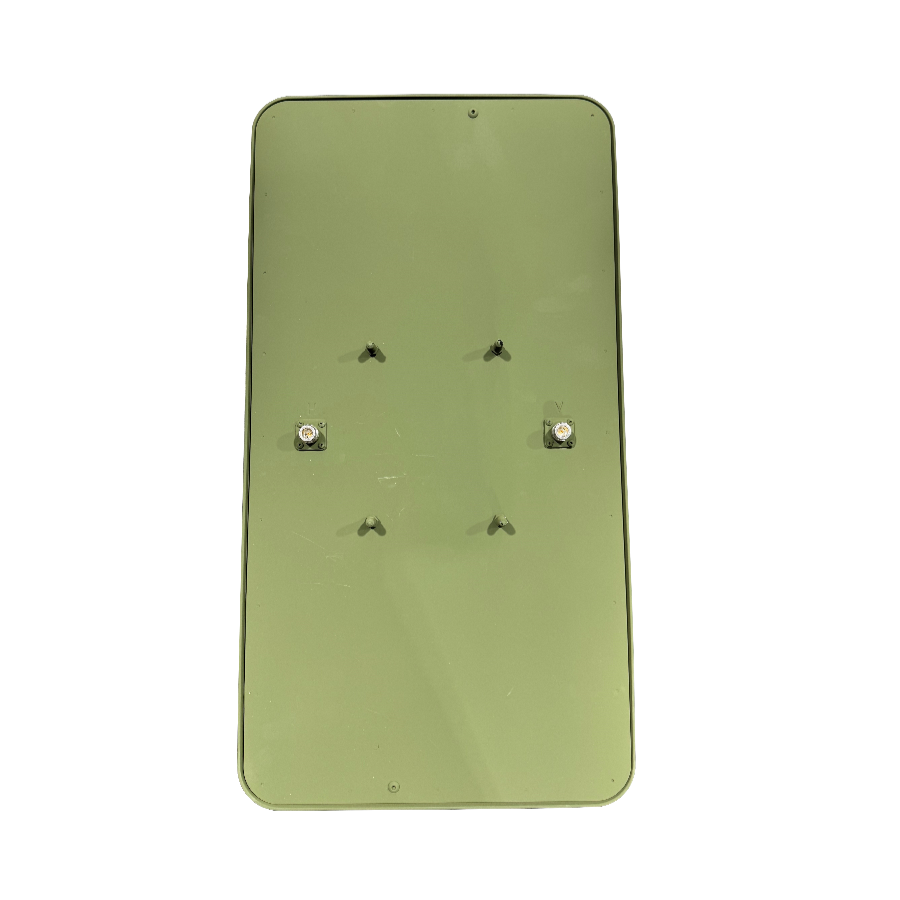

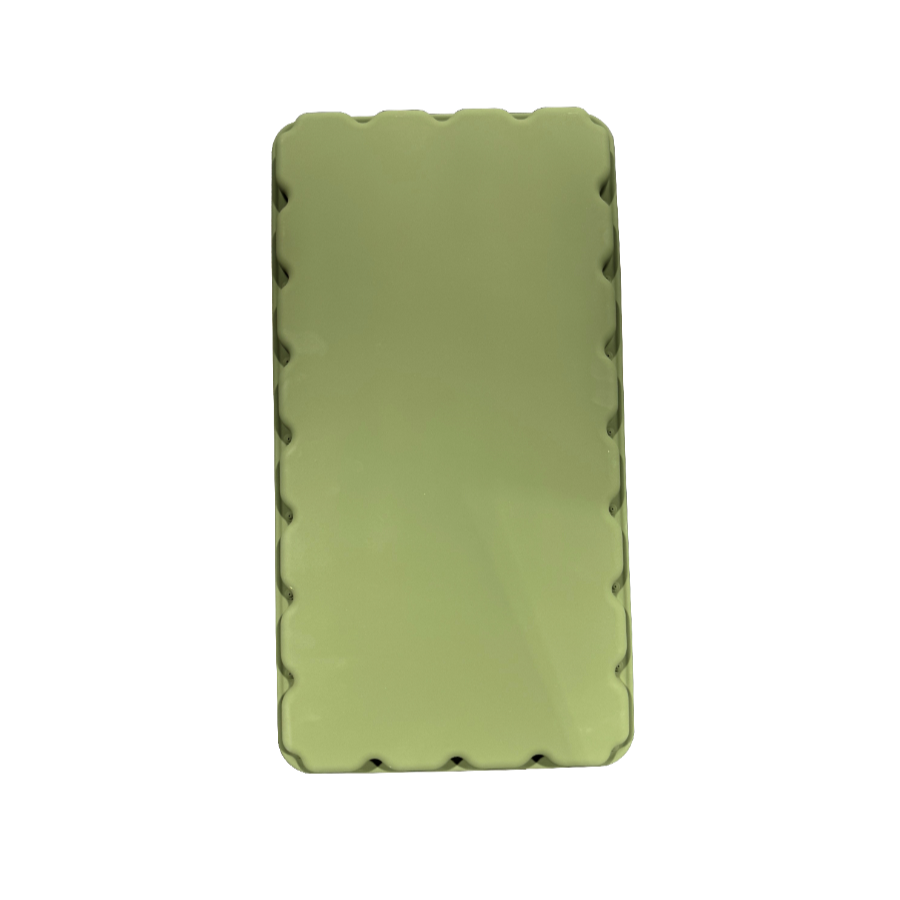

2200-2500 & 4400-5000 MHZ (1Y58150) FXSP2.2-2.5/4.4-5.0, REV A

The Hascall-Denke FXSP2.2-2.5/4.4-5.0-D is a dual S and C-Band 2 Port sector panel antenna specifically designed for communications platforms operating between 2200-2500 & 4400-5000 MHz. This antenna features 16 dBi of gain and true dual polarization. It is housed in a UV stable polycarbonate radome and constructed with corrosion resistant materials for superior performance and maximum reliability in the most extreme environments.





Features

  • Flat Thin Design
  • Lightweight
  • Ultra-high throughput ready
  • Low (BER) Capable

    ELECTRICAL:

    •  Frequency Range: 2200-250 & 4400-5000 MHz
    •  Gain: 16 dBi
    •  VSWR: 1.5:1 Typical; 2:1 Max
    •  Input Impedance: 50 Ω Nominal
    •  Isolation: 30 dB
    •  Power: 50 Watts Peak
    •  Polarization: Horizontal & Vertical
    •  Radiation Pattern:
      • Azimuth: 54°
      • Elevation: 12°
    •  Input Connector: (2) Type N (F)

    MECHANICAL:

    • Design: Sector
    • Height: 24.2 in. (0.61 m)
    • Width: 12.9 in. (0.33 m)
    • Weight: 7.33 lbs. (3.33 kg)
    • Operational Temperature: -40° to +80° C (-40° to +176° F)
    • Radome: Polycarbonate
    • Color: Black/Green/Tan/Grey
