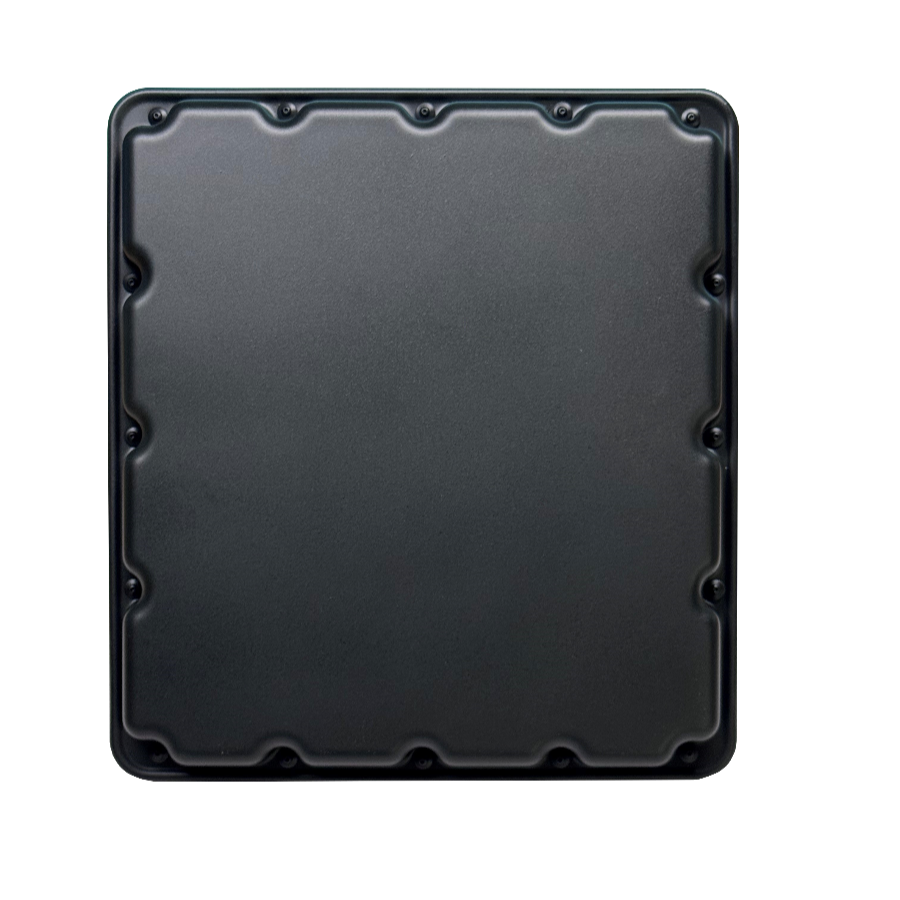

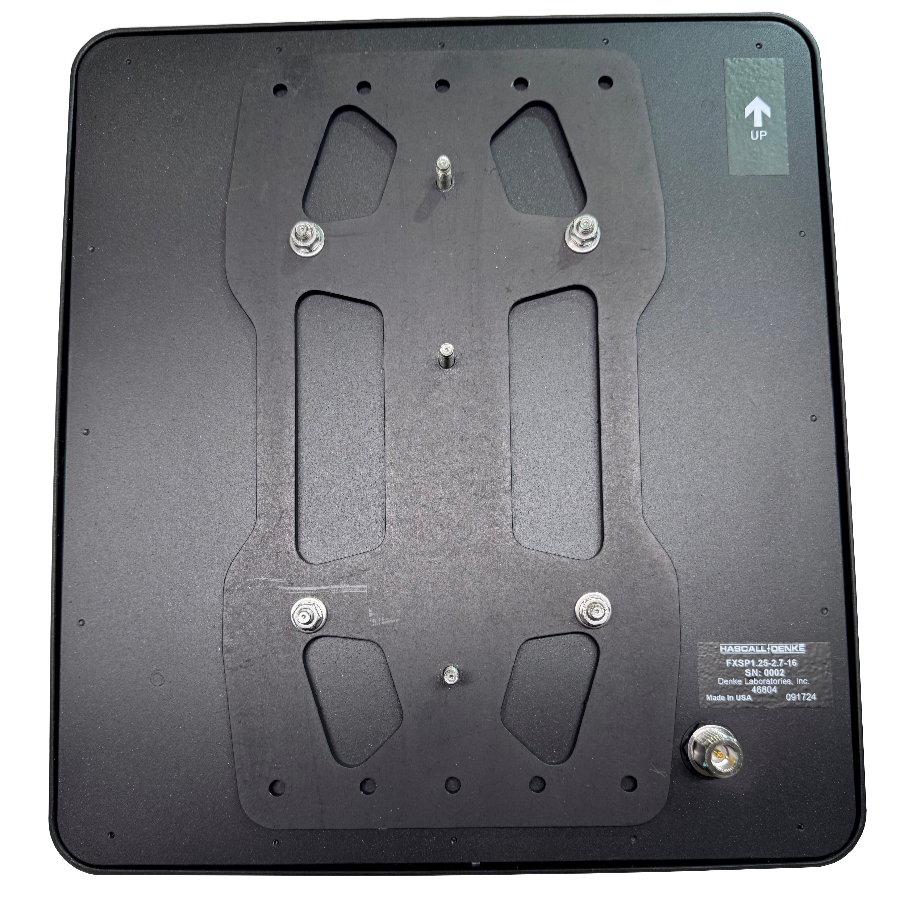

1250-2700 MHZ (1Y57700) FXSP1.25-2.7-15AB, REV A

The FXSP1.25-2.7-15AB features high gain, can be easily installed and is designed to support extremely high volume data rates, equal bit data streams and low BER. Featuring a frequency range of 1250 to 2700 MHz, this antenna bridges the gap between the Military, Homeland Security and Commercial markets.



Features

  • High Gain

    ELECTRICAL:

    •  Frequency Range: 1250-2700 MHz
    •  Gain: 15 dBi
    •  VSWR: 2.0:1 Typical; 2.5:1 Max
    •  Input Impedance: 50 Ω Nominal
    •  Power: 50 Watts Max
    •  Polarization: Vertical
    •  Radiation Pattern: Azimuth: 26-30°
    •  Elevation: 26-30°
    •  Input Connector: Type N (F)

    MECHANICAL:

    • Design: Sector
    • Height: 13.6 in. (0.345 m)
    • Width: 12.4 in. (0.315 m)
    • Thickness: 1.3″ (33.02 mm)
    • Weight w/o mounting bracket: 4.88 lbs. (2.22 kg)
    • Weight w/mounting bracket: 7.19 lbs. (3.26 kg)
    • Operational Temperature: -40° to +80° C (-40° to +176° F)
    • Mechanical Tilt: +15°/ -25°
    • Radome: Polycarbonate
    • Color: Black/Green/Tan/Grey
